Philips DSR704 IR Window??
| |
|
Topic: | Philips DSR704 IR Window?? This thread has 7 replies. Displaying all posts. |
|
Post 1 made on Monday July 10, 2006 at 00:31 |
GalenMD Founding Member |
Joined: Posts: | March 2002 47 |
|
|
Does anyone know the location of the IR window on this unit? There is nothing to be said about it on the manual, and I can't find anything online. On every device I have there is a red-glass IR window, except for this thing. I need to know where to place my IR emitter.
Any help would be appreciated.
|
|
Post 2 made on Monday July 10, 2006 at 01:32 |
edmund Elite Member |
Joined: Posts: | April 2002 13,839 |
|
|

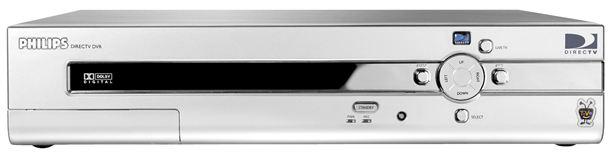

Its the window just right of the power button and LED's.
|
|
OP | Post 3 made on Monday July 10, 2006 at 10:37 |
GalenMD Founding Member |
Joined: Posts: | March 2002 47 |
|
|
Thanks, but that is not anything like what my DVR looks like.
The whole front is almost one solid piece of metal. There is a door for the card, the 5-way buttons and the Tivo button. While there are two LED's in front, the only possible "window" I see is the center Select button. It is a white, semi-opaque, round button. Could that be it? Strange.
Funny thing is, I am getting a response from the unit, even though the front is completely blocked by an object! However, the response is definitely slower since I moved it there.
|
|
Post 4 made on Monday July 10, 2006 at 14:43 |
djy RC Moderator |
Joined: Posts: | August 2001 34,758 |
|
|
On July 10, 2006 at 10:37, GalenMD said...
Thanks, but that is not anything like what my DVR looks like. Interesting. All the pics. of a 704 that I've found look exactly the same as the 708 Edmund has already linked to. Indeed, it looks like the only difference between the two is the size of the hard drive; 40GB for the 704 and 80GB for the 708.
|
|
OP | Post 5 made on Monday July 10, 2006 at 14:52 |
GalenMD Founding Member |
Joined: Posts: | March 2002 47 |
|
|
Hmmm. Wonder why that is? I pulled the model right off the sticker from the box. I will dig behind the unit to see if there is any other info. It is definitely a Philips and definitely different from that 708 pict.
|
|
Post 6 made on Monday July 10, 2006 at 15:01 |
djy RC Moderator |
Joined: Posts: | August 2001 34,758 |
|
|
Do an image Google on dsr704.
|
|
Post 7 made on Monday July 10, 2006 at 15:03 |
edmund Elite Member |
Joined: Posts: | April 2002 13,839 |
|
|
Yes it is the opaque window in the middle of soccer ball looking directional keys. I have a RCA DVR80, DVR40, and R10 that look like yours. But the philips dsr 708 & 704 all supposed to look like the image I posted, which are the best looking Dtivos ever.
|
|
OP | Post 8 made on Monday July 10, 2006 at 16:16 |
GalenMD Founding Member |
Joined: Posts: | March 2002 47 |
|
|
OK. This is freaky.
I looked up the RCA and R10 images, and that is exactly what I have. But mine is clearly a Philips!! I bought it for my parents about two years ago and they gave it to me after I later upgraded them to the HR10-250. I have all the original packaging still, including the D* manual that says "Philips" on the cover.
Anyway, thank you so much for the advise. I will stick the emitter over that button when I get home. I still don't understand how it is picking up a signal while completely blocked, but I won't question it too much.
|
|
|
