2006 CEDIA Expo Report

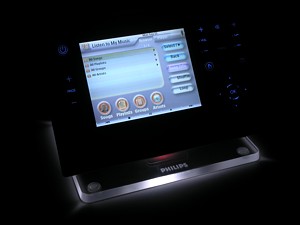

Philips Pronto Professional TSU9600
Enlarge this photo.
TSU9600 Features

  • 3.7" LCD touchscreen with stunning 640x480 resolution
  • Equivalent of 24 hard buttons including Power, Volume, Channel, Menu Cursor, Page Up/Down and a rotating wheel
  • Blue hard button backlighting
  • 5 custom labeled buttons below the screen
  • Pickup sensor
  • Continuous front panel control surface protects screen from damage
  • Deluxe WiFi-based IR extender offers RS232 control, relay and power status sensor support (standard WiFi extender also available)
  • Extensive built-in code database, plus option to create a fully functional user database of IR codes
  • Advanced infrared code learning up to 1MHz, plus new SuperHex IR code format
  • Supports sound playback
  • Docking station and rechargable Lithium Ion battery
  • Compatible with Escient music servers and Lutron lighting systems
  • Built-in stylus
  • Uses new improved ProntoEdit Professional PC programming software
  • Software can import pre-existing CCF and PCF files

TSU9600 Specifications

Display
  • 3.7 color TFT touchscreen
  • VGA 640x480 resolution, landscape orientation
  • 65,536 colors
  • Memory
  • 64MB SDRAM
  • 64MB NAND Flash
IR
  • Maximum 36 feet operating distance
  • Maximum 15 feet at 45 degree angle
  • Learning distance 3.9-5.9
  • Learning frequency range 17kHz to 1MHz
Wireless
  • WiFi based operating at 2.4 GHz
  • Escient & Lutron support
Interface
  • USB 2.0
  • Docking station with pass-through USB connector
Battery
  • Rechargable Lithium Ion
  • 2100 mAh
  • Includes 110-240V 50/60Hz power adaptor
Power Management
  • Power on by tilting, tapping the screen, pressing the backlight button or tapping the keys
  • Power off automatically by time out
  • On/off power switch on remote
Dimensions (WxHxD)
  • Panel: 6.2 x 3.9 x 1.3"
  • Docking station: 5.4 x 4.1 x 1.9"

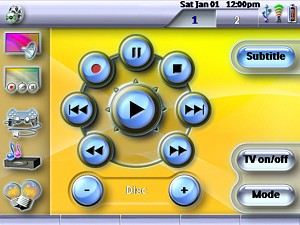

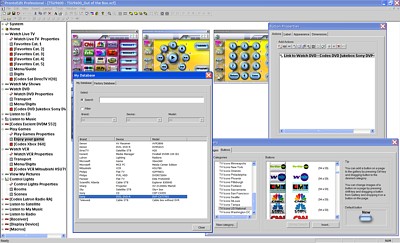

Finally, here's a screenshot from ProntoEdit Professional and an example of the default user interface.

Philips Pronto Professional TSU9600
Enlarge this photo.
Philips Pronto Professional TSU9600
Enlarge this photo.

Discuss the Pronto Professional in our forums!
